James Kimber Custom Home Theater Door: A Fabric Tufted Soundproof Entrance with Engraved “K” Porthole
When film professional James Kimber needed a true cinematic entrance for his private screening room, he found us online and asked for something most manufacturers do not offer: a fully custom, fabric-upholstered soundproof theater door instead of vinyl. He chose fabric sample No. 11 from our waterproof technical fabric collection brochure, supplied exact dimensions, requested a large engraved “K” in the easy-view porthole, and specified a matte-black plated stainless-steel pull. We translated his brief into CAD, built the door to the approved drawing, photographed it for final sign-off, and shipped it. This page documents that exact project so homeowners, designers, and search engines can see how a one-of-a-kind home theater door is specified, approved, and delivered.
The Kimber Brief
James Kimber contacted us after searching for a custom soundproof home theater door with personality. His requirements were clear:
- Upholstery in fabric, not vinyl
- Color and texture matching fabric swatch 2028-11
- Single swing door, 36″ wide × 80″ high × 1-3/4″ thick
- Classic tacked button tufting on both faces
- Circular easy-view porthole (etched-glass window) with a large custom “K”
- Matte-black stainless-steel bar handle, 450 mm long on an 80 mm backplate
- Matching kick plate and chocolate-stained mahogany frame

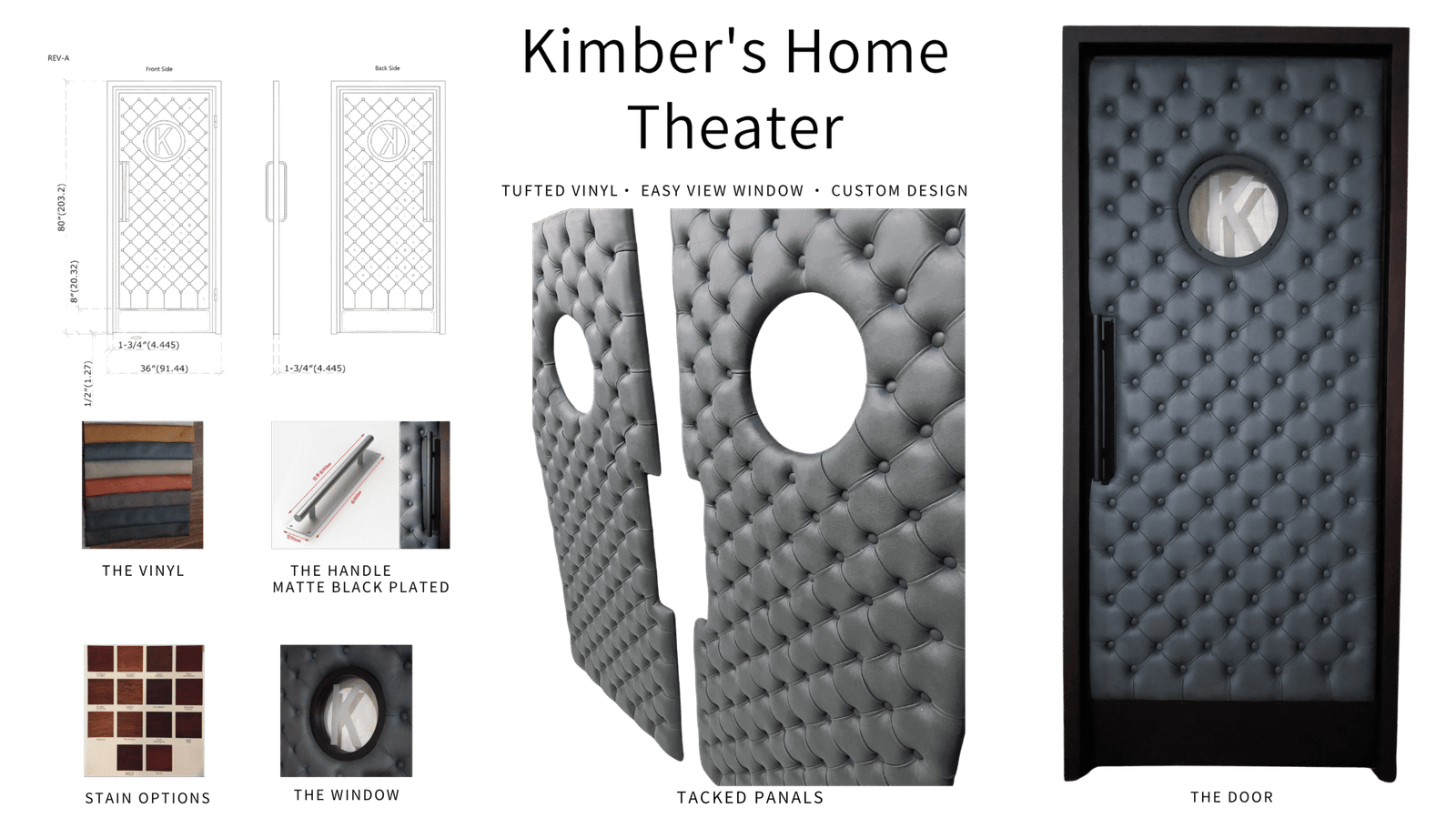

We produced a detailed CAD (Revision A) showing front, back, and side elevations with all dimensions, handle placement, tufting grid, and window location. After Kimber approved the drawing, production began.
From Approved CAD to Finished Door
- Fabric selection and cutting — Waterproof technical fabric No. 11 was cut and prepared for deep diamond tufting.

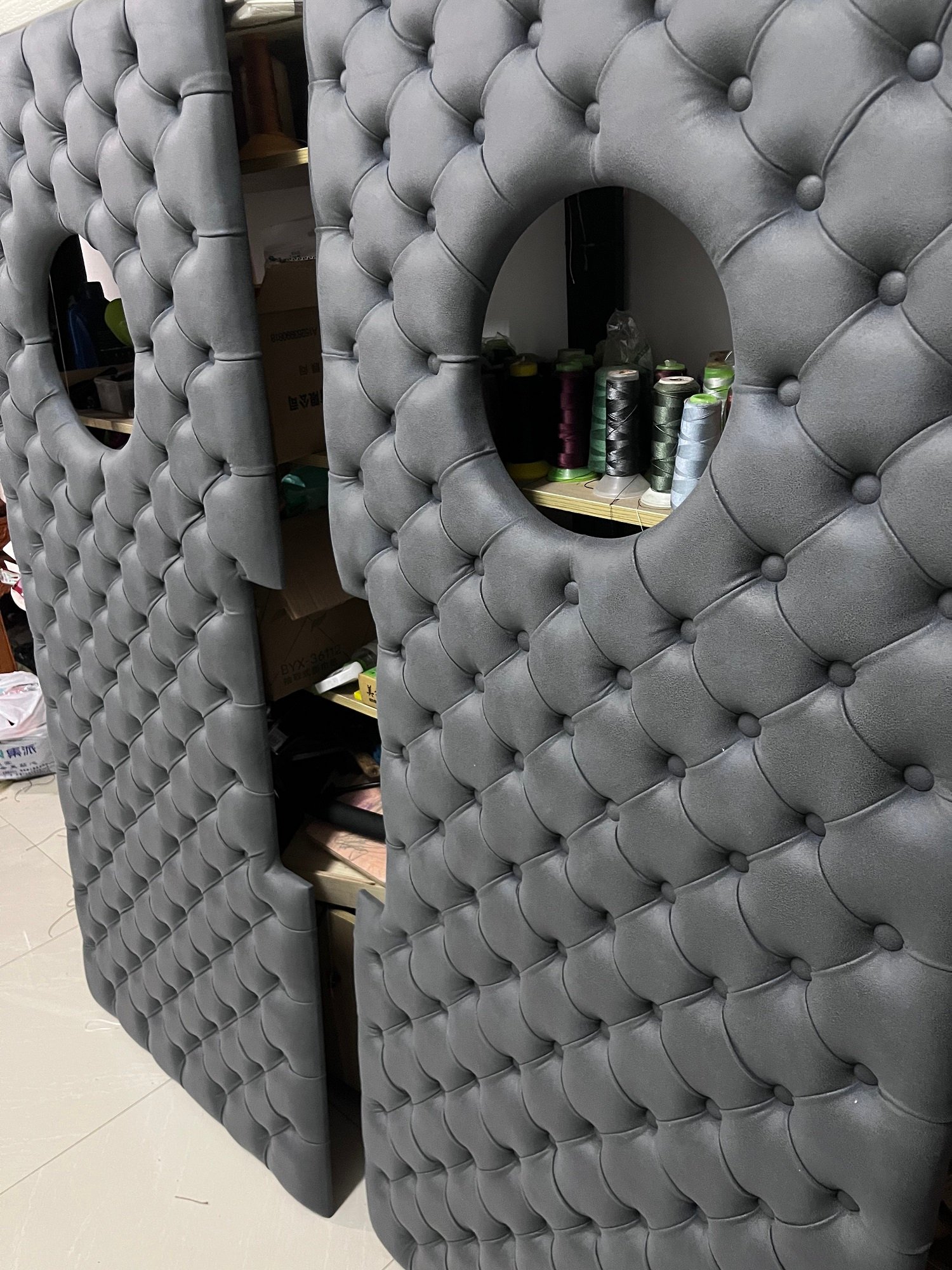

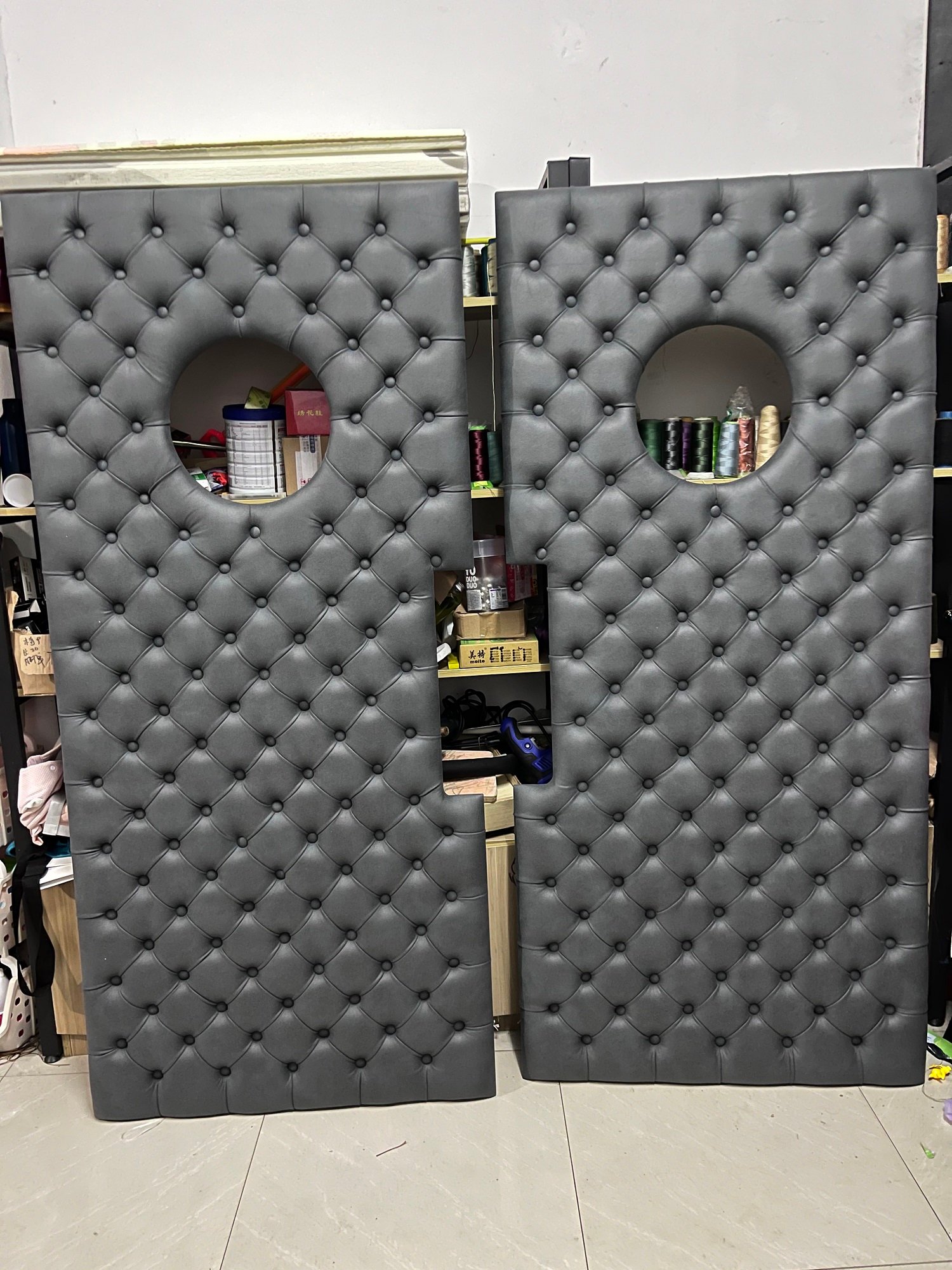

- Panel construction — Two tufted faces were built with the circular opening for the porthole; the handle cut-out and kick-plate area were left clean.
- Hardware — A stainless-steel pull was custom plated in matte black to the exact 450 mm × 80 mm specification and mounted on both sides of the door.
- Porthole — Tempered/etched glass with a prominent “K” was set in a black circular frame.
- Frame and assembly — Mahogany stiles and rails in chocolate stain received the upholstered panels, creating a 1-3/4″ thick acoustic door.
- Client photos and shipping — Studio and detail photographs of tufting, handle, window, and full door were sent for approval. Once confirmed, the door was crated and shipped.

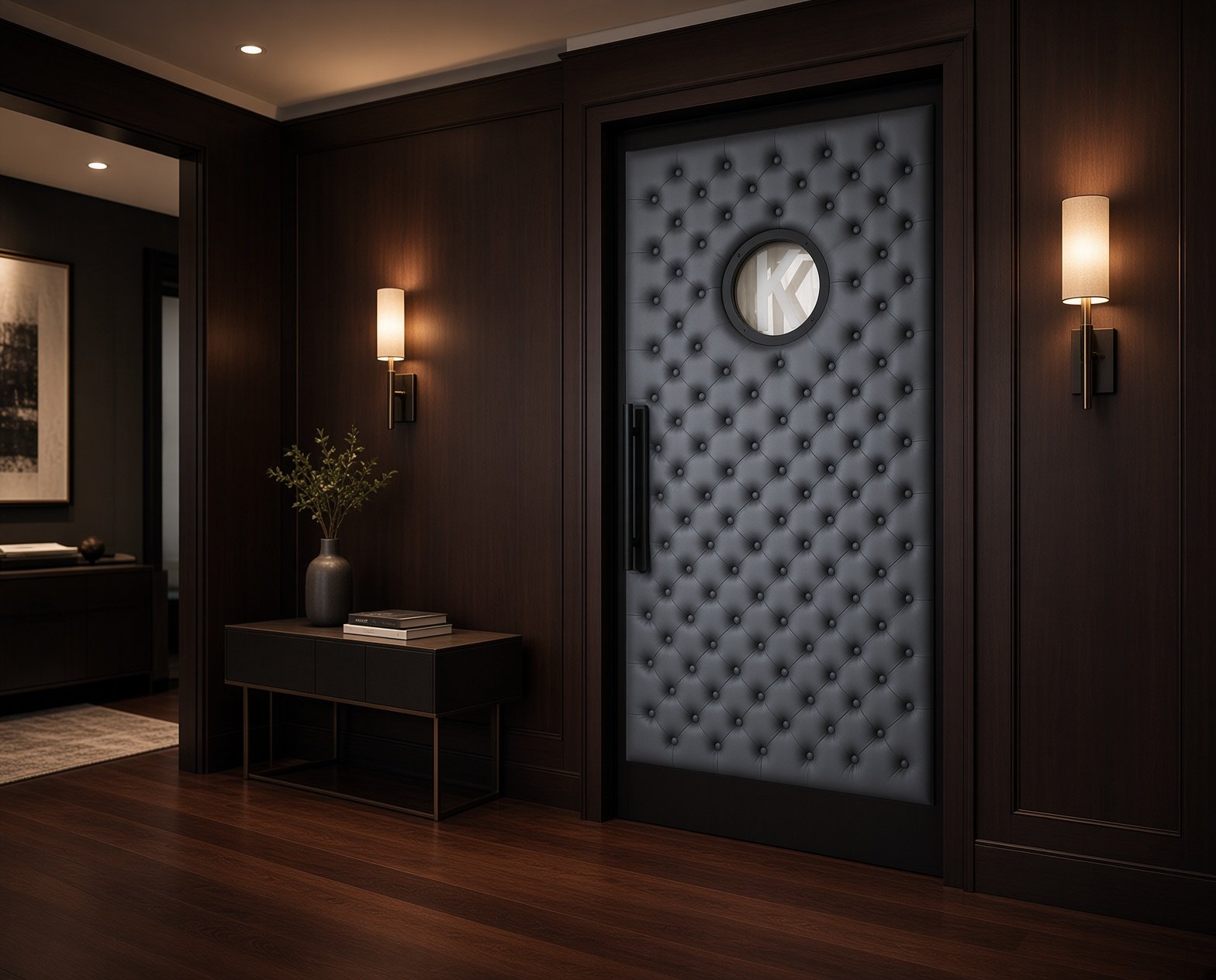

The result is a 36″ × 80″ single-swing sound-dampening entrance that reads as both furniture and architecture: plush charcoal fabric, precise button grid, discreet matte-black hardware, and a personalized porthole that hints at the theater beyond.
Why Fabric Instead of Vinyl
Vinyl is common on theater doors because it is durable and easy to clean. Kimber specifically requested fabric for a softer hand, richer texture under theater lighting, and a more residential feel. The chosen waterproof technical fabric still offers stain and moisture resistance while delivering the acoustic mass and visual depth that diamond tufting is known for. Designers searching for “fabric tufted home theater door” or “custom fabric soundproof cinema door” will find this project a direct match.Key Specifications (Kimber Door)
- Size: 36″ × 80″ × 1-3/4″ (91.44 cm × 203.2 cm × 4.445 cm)
- Core and frame: mahogany, chocolate stain
- Upholstery: waterproof technical fabric, color 2028-11, diamond tufted both sides
- Window: circular easy-view porthole with custom engraved “K”
- Hardware: matte-black plated stainless-steel bar pull, 450 mm length, 80 mm backplate
- Additional: kick plate, sound-dampening construction
- Lead time after CAD approval: typical custom range 30–45 days (project-specific)
How to Commission Your Own Version
The Kimber process is the same process we use for every custom theater door:Search “custom home theater door” or “tufted soundproof cinema door” and land here. Send dimensions, fabric or vinyl preference, handle finish, and any initial or motif for the porthole. We return a CAD drawing. You approve. We build, photograph, and ship. Options include single or double doors, different fabric collections, brass or black hardware, diamond or channel tufting, and various window shapes.
FAQ
What is the difference between a fabric and a vinyl home theater door?
Fabric offers a softer, more upholstered residential look and can still be specified in waterproof technical weaves. Vinyl is typically more wipe-clean. James Kimber chose fabric sample 2028-11 for texture and acoustics.
Can I put my own initial in the porthole window?
Yes. The Kimber door uses a large engraved “K.” Any letter or simple motif can be etched into the easy-view glass.What handle finishes do you offer?
Kimber specified matte-black plated stainless steel (450 mm bar on 80 mm plate). We also produce polished stainless, brass, and custom lengths.
How accurate is the CAD process?
We issue a dimensioned drawing (front, back, side) showing tufting layout, window location, handle height, and thickness. Production does not start until the client signs off, exactly as Kimber did with Revision A.
Is the door soundproof?
The combination of solid mahogany core, thick tufted fabric panels, and tight frame provides significant sound dampening suitable for a dedicated home cinema. Exact STC ratings depend on surrounding wall construction.
Can you match a fabric I already have?
We can work from our Tiandu (and other) collections or attempt to source a close commercial equivalent. Send a swatch or photo for review.
What is typical lead time?
After CAD approval, most single tufted theater doors fall in the 30–45 day range, matching the Kimber project timeline.
Do you ship internationally?
Yes. The finished Kimber door was photographed, approved, and shipped to the client after final confirmation.
Ready to start your own custom theater door?
Send your rough opening size, preferred fabric or vinyl, handle finish, and any window lettering. We will return a CAD drawing for approval—the same first step James Kimber took when he found us online and asked for a fabric tufted door with a “K” porthole and matte-black hardware.Crown Custom Doors — custom soundproof home theater doors, fabric or vinyl, made to your drawing.
